Instantaneous planes from NREL5MW ALM case
# Add any possible locations of amr-wind-frontend here
amrwindfedirs = ['/projects/wind_uq/lcheung/amrwind-frontend/',
'/ccs/proj/cfd162/lcheung/amrwind-frontend/',
]
import sys, os, shutil, io
import numpy as np
for x in amrwindfedirs: sys.path.insert(1, x)
from functools import partial
import matplotlib.pyplot as plt
# Make all plots inline
%matplotlib inline
import postproengine as ppeng
/ascldap/users/lcheung/.local/lib/python3.9/site-packages/pandas/core/computation/expressions.py:21: UserWarning: Pandas requires version '2.8.4' or newer of 'numexpr' (version '2.8.1' currently installed).
from pandas.core.computation.check import NUMEXPR_INSTALLED
/ascldap/users/lcheung/.local/lib/python3.9/site-packages/pandas/core/arrays/masked.py:60: UserWarning: Pandas requires version '1.3.6' or newer of 'bottleneck' (version '1.3.4' currently installed).
from pandas.core import (
# Load ruamel or pyyaml as needed
try:
import ruamel.yaml
yaml = ruamel.yaml.YAML(typ='unsafe', pure=True)
useruamel=True
loaderkwargs = {'Loader':yaml.RoundTripLoader}
dumperkwargs = {'Dumper':yaml.RoundTripDumper, 'indent':4, 'default_flow_style':False}
Loader=yaml.load
except:
import yaml as yaml
useruamel=False
loaderkwargs = {}
dumperkwargs = {'default_flow_style':False }
Loader=yaml.safe_load
def stringReplaceDict(s, dreplace):
outstr = str(s)
for k, g in dreplace.items():
outstr=outstr.replace(k, str(g))
return outstr
def formatplot(fig, ax):
#ax.set_xlim([-2, 10])
#ax.set_ylim([-1.5,1.5])
return
ppeng.formatplot = formatplot
replacedict={'RUNDIR':'/pscratch/lcheung/HFM/exawind-benchmarks/NREL5MW_ALM_BD_OFv402_ROSCO.redo',
}
yamlstring="""
trange: &trange [15300, 15900]
globalattributes:
verbose: False
# udfmodules:
# - testinterp.py
executeorder:
- avgworkflow
- instantaneousplanes

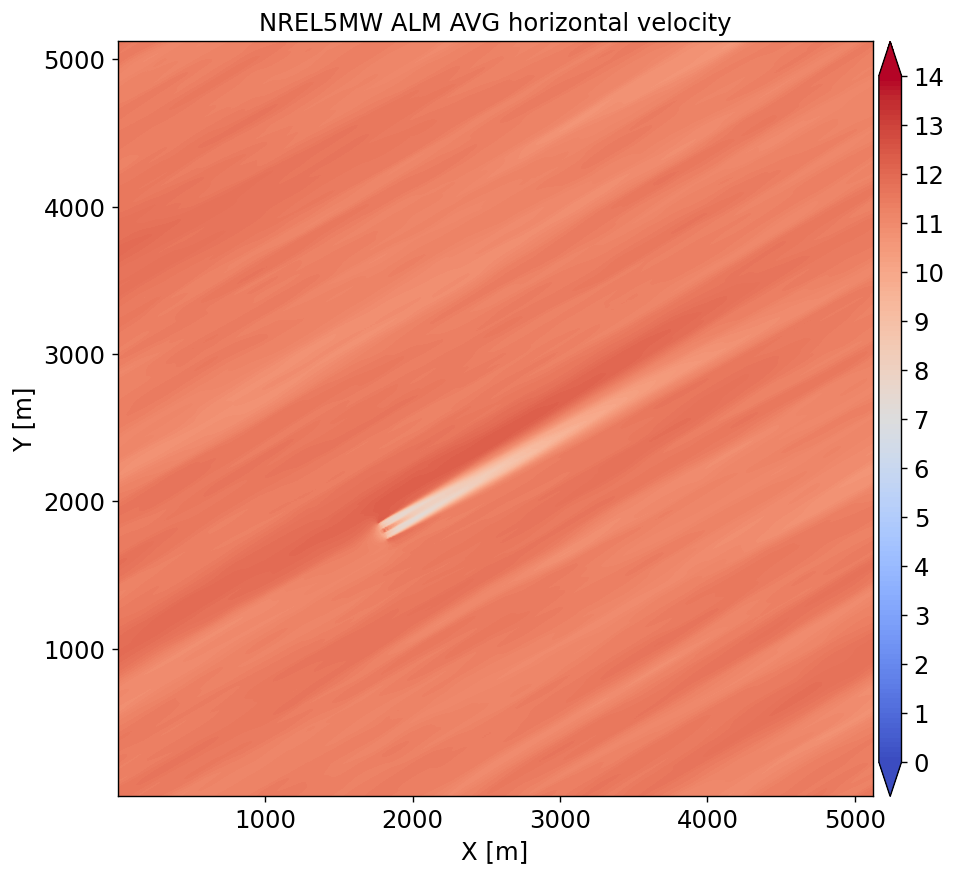

avgworkflow:
avgplanes:
- name: XYdomain
ncfile:
- RUNDIR/post_processing/XYdomain_090_30000.nc
tavg: *trange
#savepklfile: avg_fixed_hhdomain.pkl # Name of pickle file to save results (Optional, Default: '')
#loadpklfile: avg_fixed_hhdomain.pkl
#group: T0_YZ_wake2 # Which group to pull from netcdf file (Optional, Default: None)
contourplot:
plotfunc: "lambda db: np.sqrt(db['velocityx_avg']**2 + db['velocityy_avg']**2)"
title: 'NREL5MW ALM AVG horizontal velocity'
xaxis: x # Which axis to use on the abscissa
yaxis: y # Which axis to use on the ordinate
iplane: [0]
clevels: np.linspace(0, 14, 141)
cbar_nticks: 15
savefile: '../results/images/XYdomain_AVG_15300_15900.png'

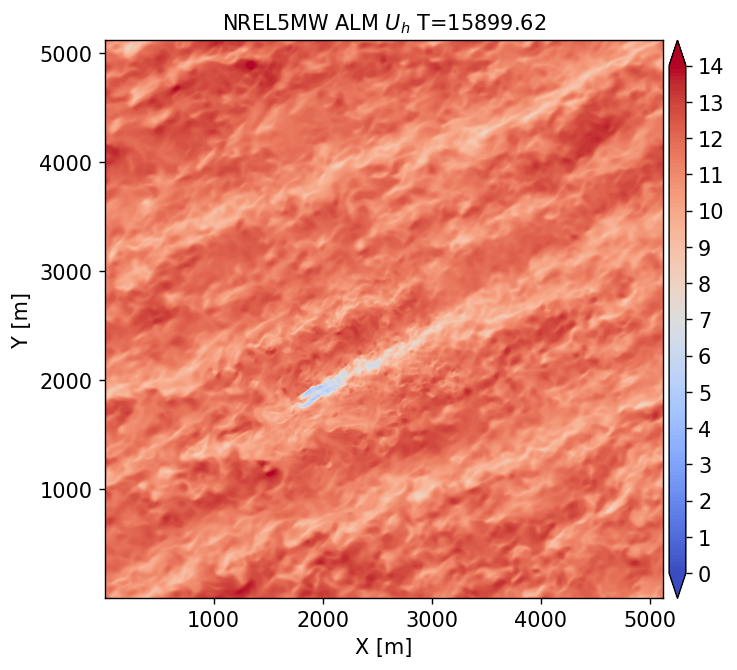

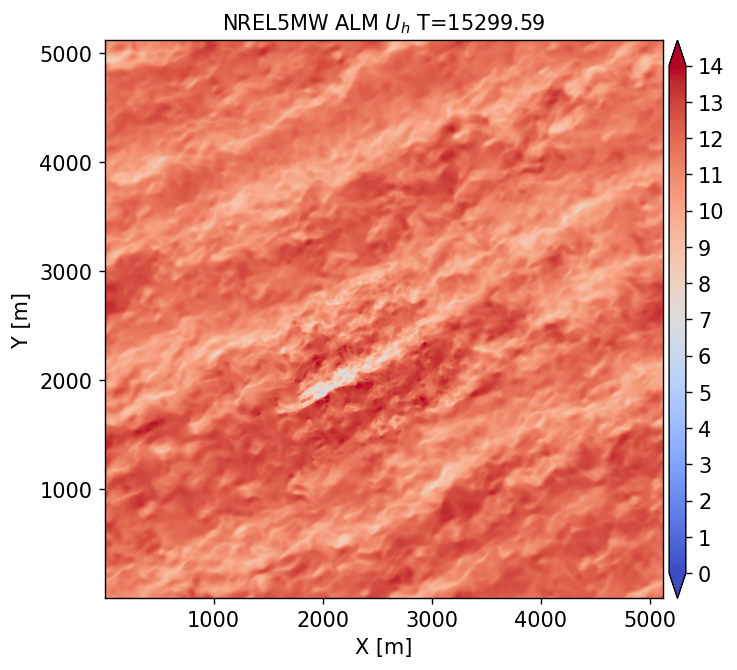

instantaneousplanes:
- name: DomainXY
ncfile: RUNDIR/post_processing/XYdomain_090_30000.nc
iters: []
times: [15300, 15900]
iplane: 0
xaxis: x
yaxis: y
# --- optional stuff here ---
plot:
title: 'NREL5MW ALM $U_h$ T={time:0.2f}'
plotfunc: "lambda db,i: np.sqrt(db['velocityx'][i]**2 + db['velocityy'][i]**2)"
clevels: 'np.linspace(0, 14, 141)'
xlabel: 'X [m]'
ylabel: 'Y [m]'
cbar_nticks: 15
fontsize: 12
figsize: [6,6]
dpi: 125
savefile: '../results/images/XYdomain_INST_{time:05.0f}.png'

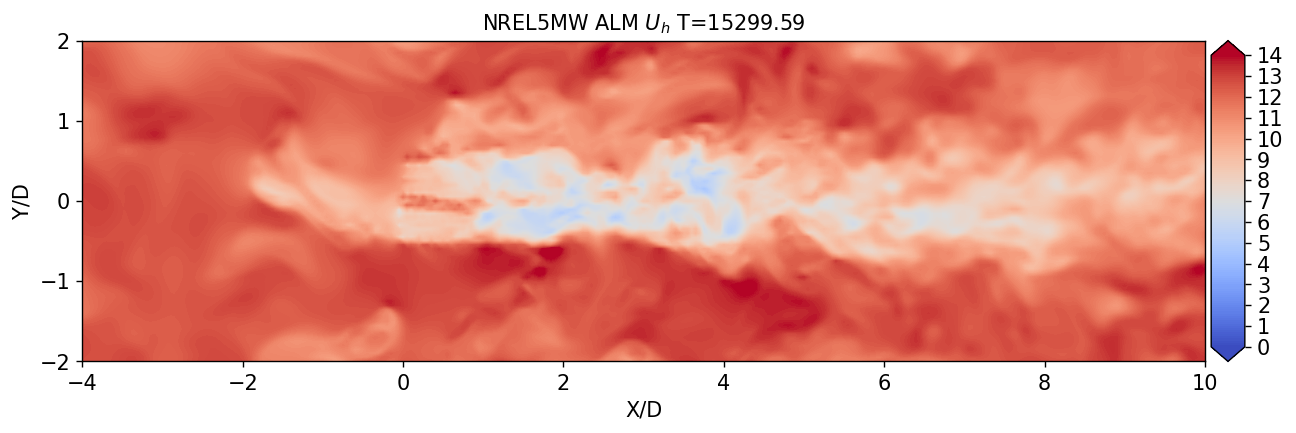

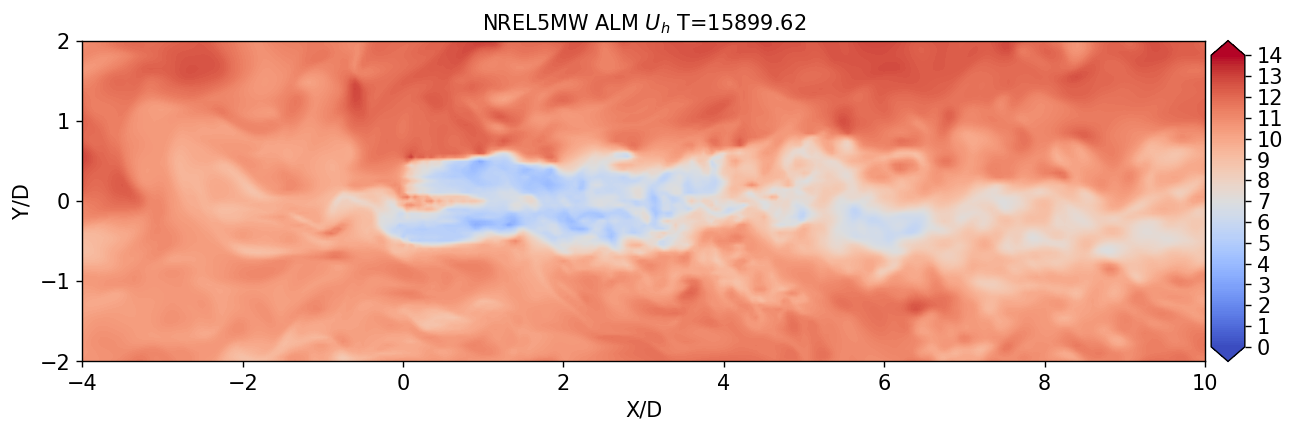

- name: Turb HH
ncfile: RUNDIR/post_processing/turbhh_30000.nc
iters: []
times: [15300, 15900]
iplane: 0
xaxis: a1
yaxis: a2
# --- optional stuff here ---
plot:
title: 'NREL5MW ALM $U_h$ T={time:0.2f}'
plotfunc: "lambda db,i: np.sqrt(db['velocityx'][i]**2 + db['velocityy'][i]**2)"
clevels: 'np.linspace(0, 14, 141)'
xlabel: 'X/D'
ylabel: 'Y/D'
figsize: [12,4]
cbar_nticks: 15
fontsize: 12
xscalefunc: 'lambda x: (x-126*4)/126.0'
yscalefunc: 'lambda y: (y-126*2)/126.0'
savefile: '../results/images/turbineHH_INST_{time:05.0f}.png'

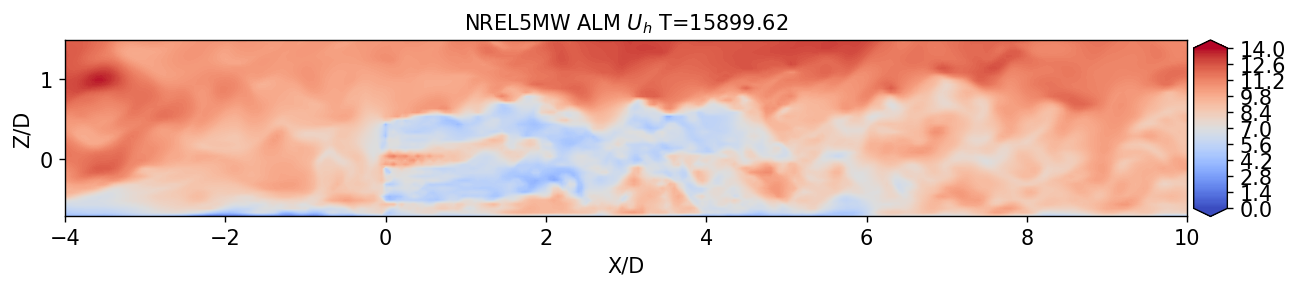

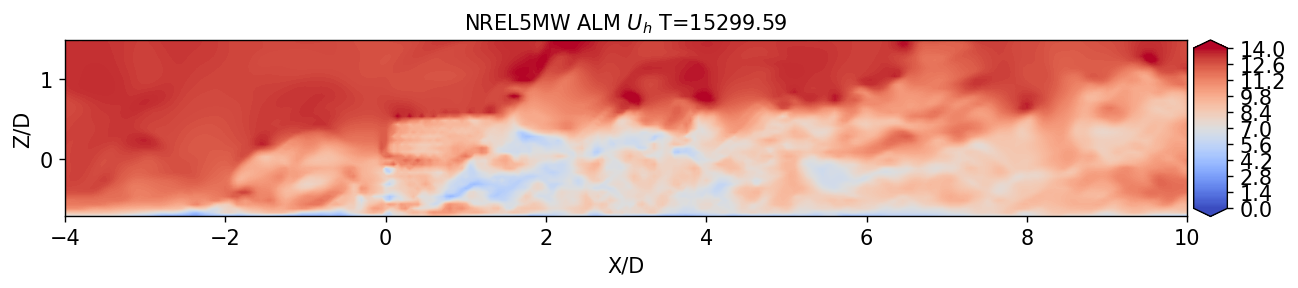

- name: Turb SW
ncfile: RUNDIR/post_processing/turbsw_30000.nc
iters: []
times: [15300, 15900]
iplane: 0
xaxis: a1
yaxis: a2
# --- optional stuff here ---
plot:
title: 'NREL5MW ALM $U_h$ T={time:0.2f}'
plotfunc: "lambda db,i: np.sqrt(db['velocityx'][i]**2 + db['velocityy'][i]**2)"
#plotfunc: "lambda db,i: db['velocityz'][i]"
clevels: 'np.linspace(0, 14, 141)'
#clevels: 'np.linspace(-2, 2, 21)'
xlabel: 'X/D'
ylabel: 'Z/D'
figsize: [12,3]
cbar_nticks: 11
fontsize: 12
xscalefunc: 'lambda x: (x-126*4)/126.0'
yscalefunc: 'lambda z: (z-90)/126.0'
savefile: '../results/images/turbineSW_INST_{time:05.0f}.png'
"""
f = io.StringIO(stringReplaceDict(yamlstring, replacedict))
yamldict = Loader(f, **loaderkwargs)
# Run the driver
ppeng.driver(yamldict, verbose=True)
Initialized avgplanes
Running avgplanes
/pscratch/lcheung/HFM/exawind-benchmarks/NREL5MW_ALM_BD_OFv402_ROSCO.redo/post_processing/XYdomain_090_30000.nc 697
Getting data from ncfile: /pscratch/lcheung/HFM/exawind-benchmarks/NREL5MW_ALM_BD_OFv402_ROSCO.redo/post_processing/XYdomain_090_30000.nc
[============================================================] 100.0%
Ncount = 697
Initialized contourplot inside avgplanes
Executing contourplot
Initialized instantaneousplanes
Running instantaneousplanes
Extracting from ncfile: /pscratch/lcheung/HFM/exawind-benchmarks/NREL5MW_ALM_BD_OFv402_ROSCO.redo/post_processing/XYdomain_090_30000.nc 0
extracting iter 348
extracting iter 1045
Initialized plot inside instantaneousplanes
Executing plot
Extracting from ncfile: /pscratch/lcheung/HFM/exawind-benchmarks/NREL5MW_ALM_BD_OFv402_ROSCO.redo/post_processing/turbhh_30000.nc 0
extracting iter 348
extracting iter 1045
Initialized plot inside instantaneousplanes
Executing plot
Extracting from ncfile: /pscratch/lcheung/HFM/exawind-benchmarks/NREL5MW_ALM_BD_OFv402_ROSCO.redo/post_processing/turbsw_30000.nc 0
extracting iter 348
extracting iter 1045
Initialized plot inside instantaneousplanes
Executing plot
# Write out the notebook to a python script
!jupyter nbconvert --to script InstantaneousAvgPlanes.ipynb
with open('InstantaneousAvgPlanes.py', 'r') as f:
lines = f.readlines()
with open('InstantaneousAvgPlanes.py', 'w') as f:
for line in lines:
if "'matplotlib', 'inline'" in line: line = 'plt.show(block=False)'
if 'nbconvert --to script' in line:
break
else:
f.write(line)
[NbConvertApp] Converting notebook InstantaneousAvgPlanes.ipynb to script
[NbConvertApp] Writing 5014 bytes to InstantaneousAvgPlanes.py
